PostSwap™ Replaceable Timber Post Ground Sleeve

PostSwap™ Replaceable Timber Post Ground Sleeve – 600mm

Short Description

Replace timber posts without digging out the concrete footing. PostSwap™ is a 600mm galvanised steel sleeve designed to be permanently installed in concrete while allowing the timber post to be removed and replaced when needed.

Product Description

REPLACE THE POST — NOT THE CONCRETE

PostSwap™ makes future timber post replacement easier.

With a traditional installation, the timber post is concreted directly into the ground. When the post eventually rots, breaks or becomes damaged, replacing it can mean digging out the old post, breaking up the concrete and starting again.

PostSwap™ is designed to help avoid that work.

The galvanised steel sleeve is installed permanently in the concrete, while the timber post fits inside and is secured with removable fixings.

When the post needs replacing:

REMOVE. PULL. REPLACE. DONE.

1. Remove the bolts or screws holding the post in place.
2. Pull the old timber post out of the sleeve.
3. Slide a new timber post into the existing sleeve.
4. Refit the removable fixings.

The PostSwap™ sleeve and concrete footing remain in the ground.

NO MORE DIGGING OUT CONCRETE

• No breaking up heavy concrete footings
• No digging a new hole
• No removing concrete attached to the old post
• No need to pour a new footing every time a post needs replacing
• Less mess, less waste and less labour

EASY TO INSTALL

1. Prepare a suitable post hole.
2. Slide the correct-size PostSwap™ sleeve around the bottom of the timber post.
3. Position the post and sleeve in the hole.
4. Check that the post is straight and level.
5. Secure the post using suitable removable bolts or screws.
6. Pour concrete around the outside of the sleeve.
7. Allow the concrete to cure fully before use.

Small steel feet at the bottom of the sleeve become embedded in the concrete and help anchor the sleeve securely in place.

KEY FEATURES

• Designed for square timber posts
• 600mm-long galvanised steel sleeve
• Allows future post replacement
• Concrete footing can remain in place
• Four small anchoring feet, one on each side
• Removable post fixings
• Helps protect the lower section of the timber post
• Suitable for new installations
• Designed to make future maintenance easier

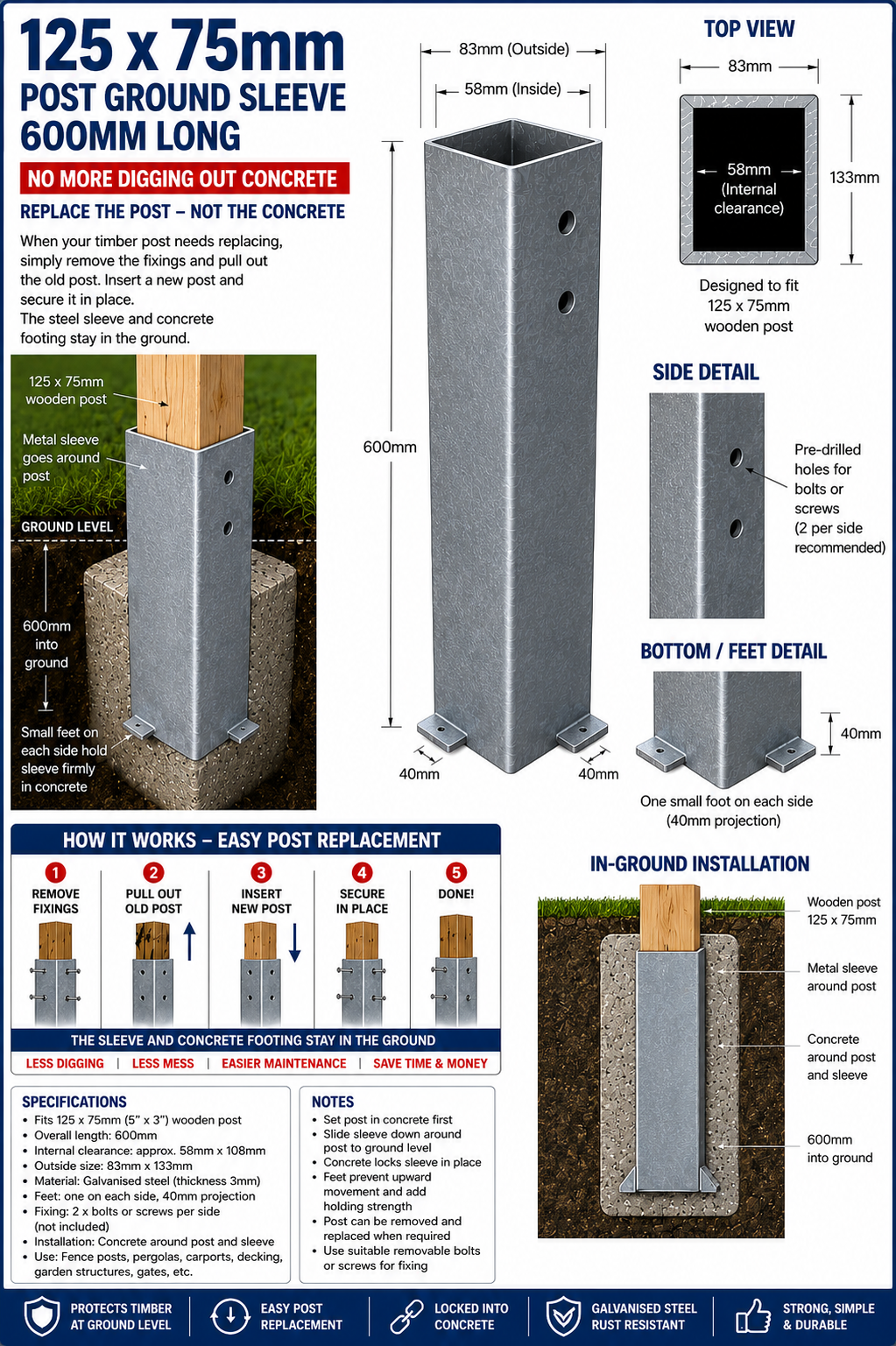

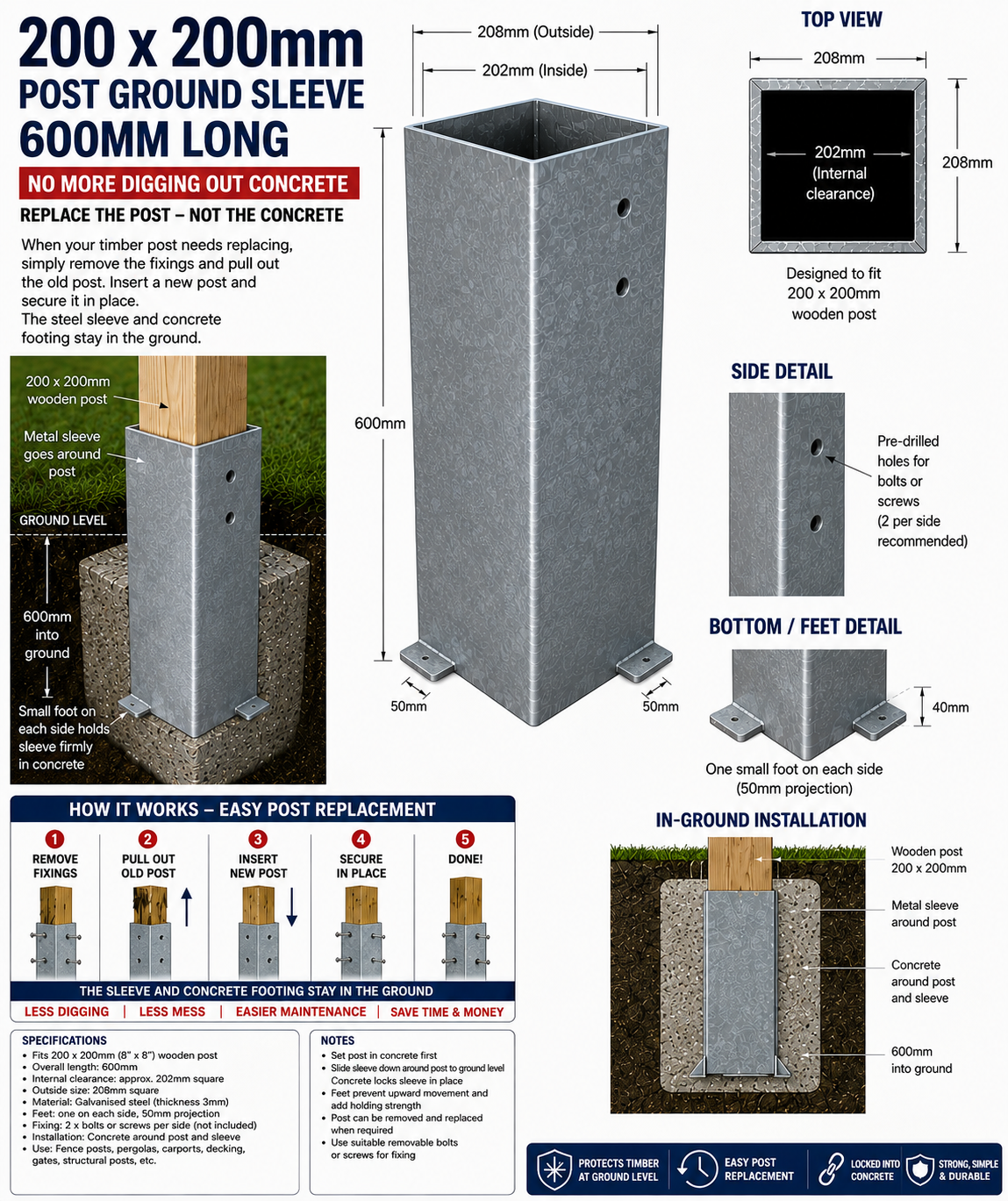

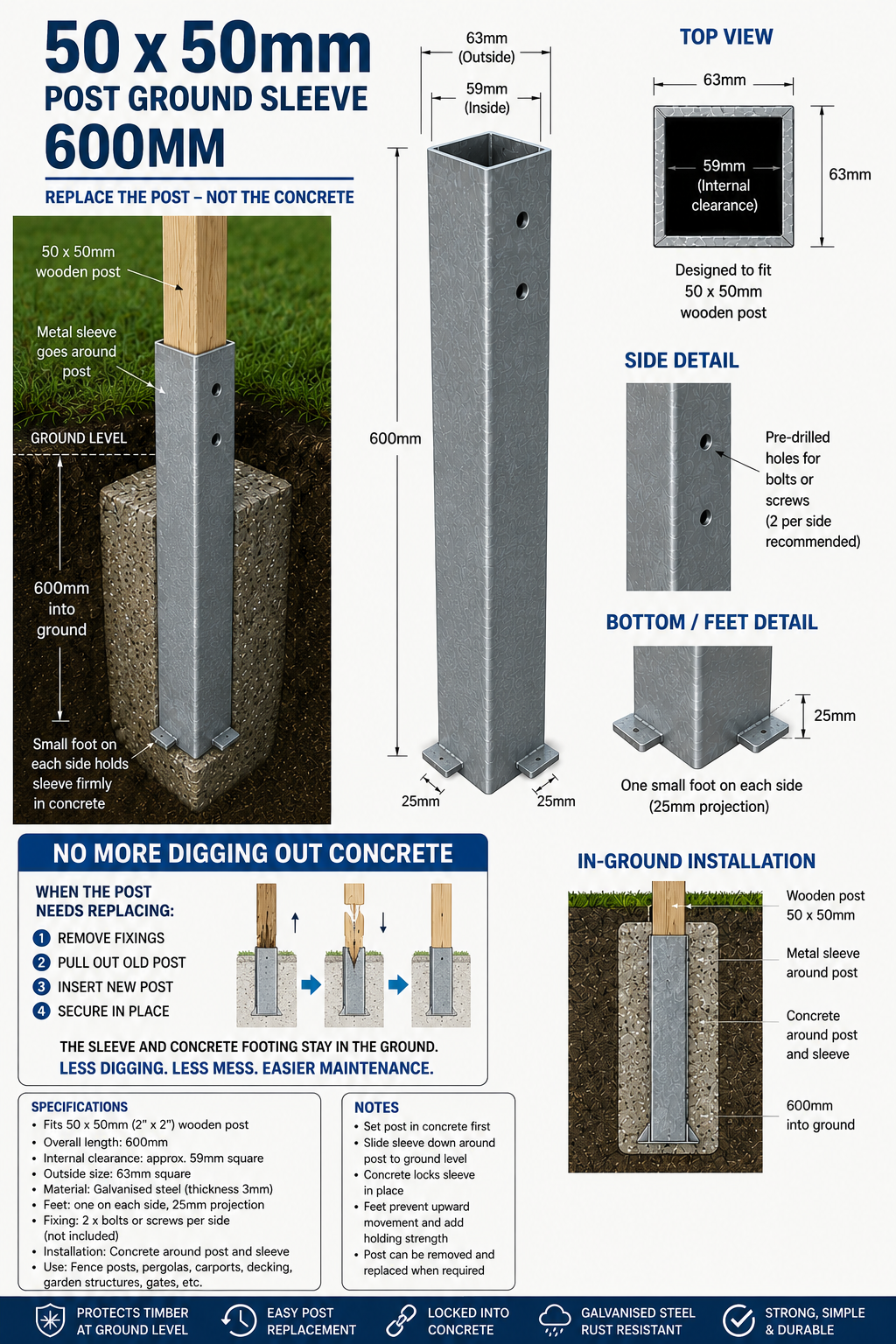

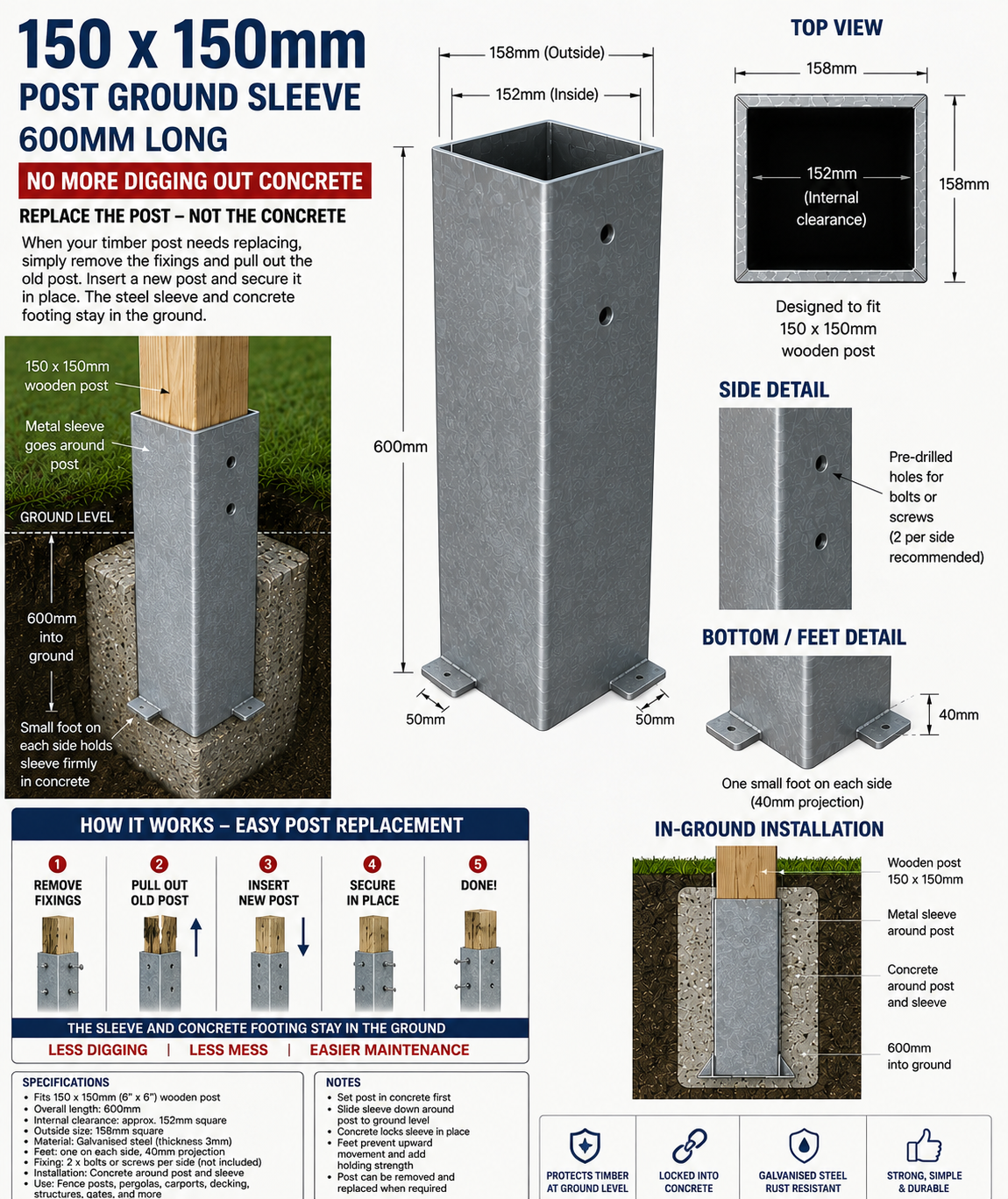

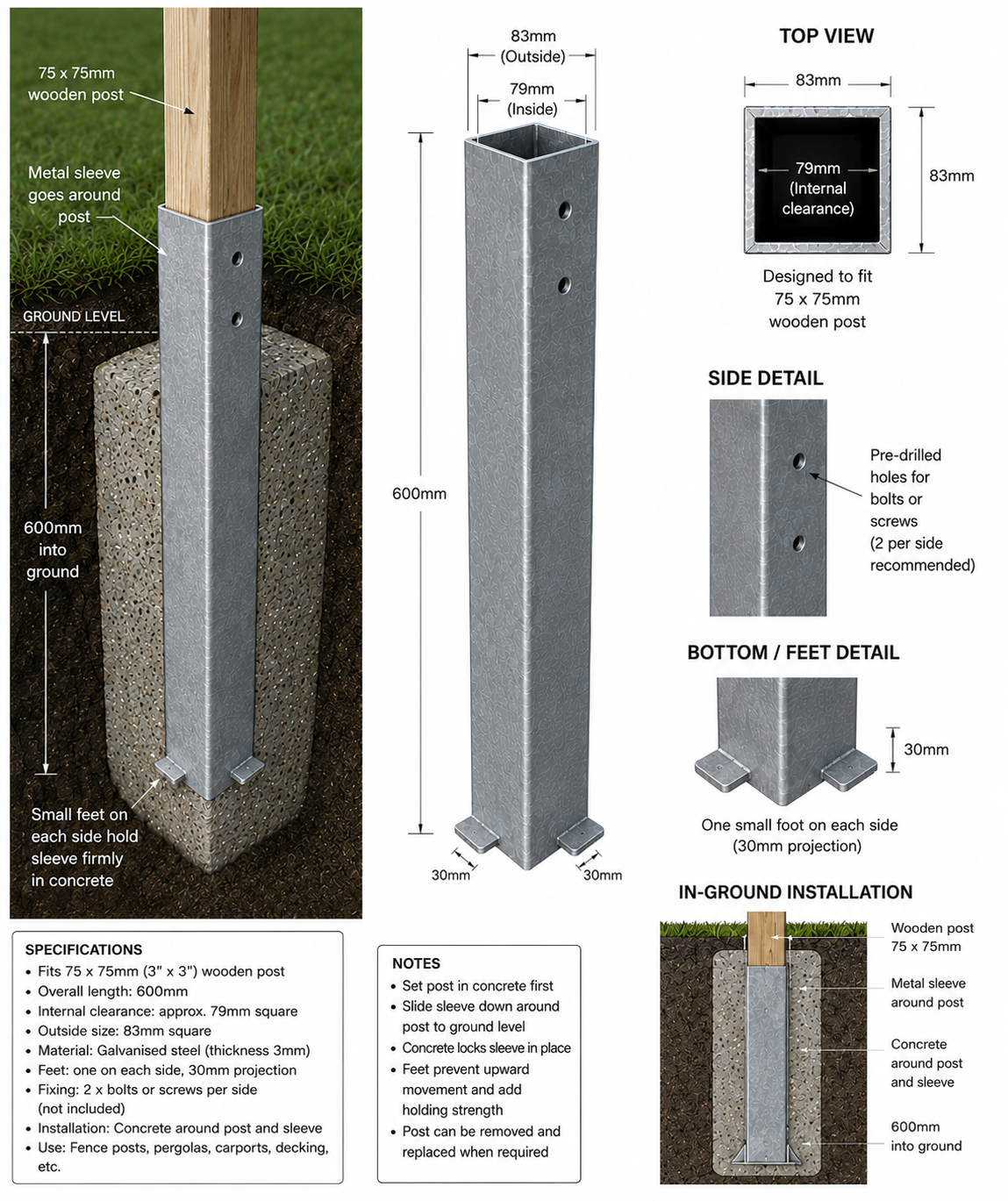

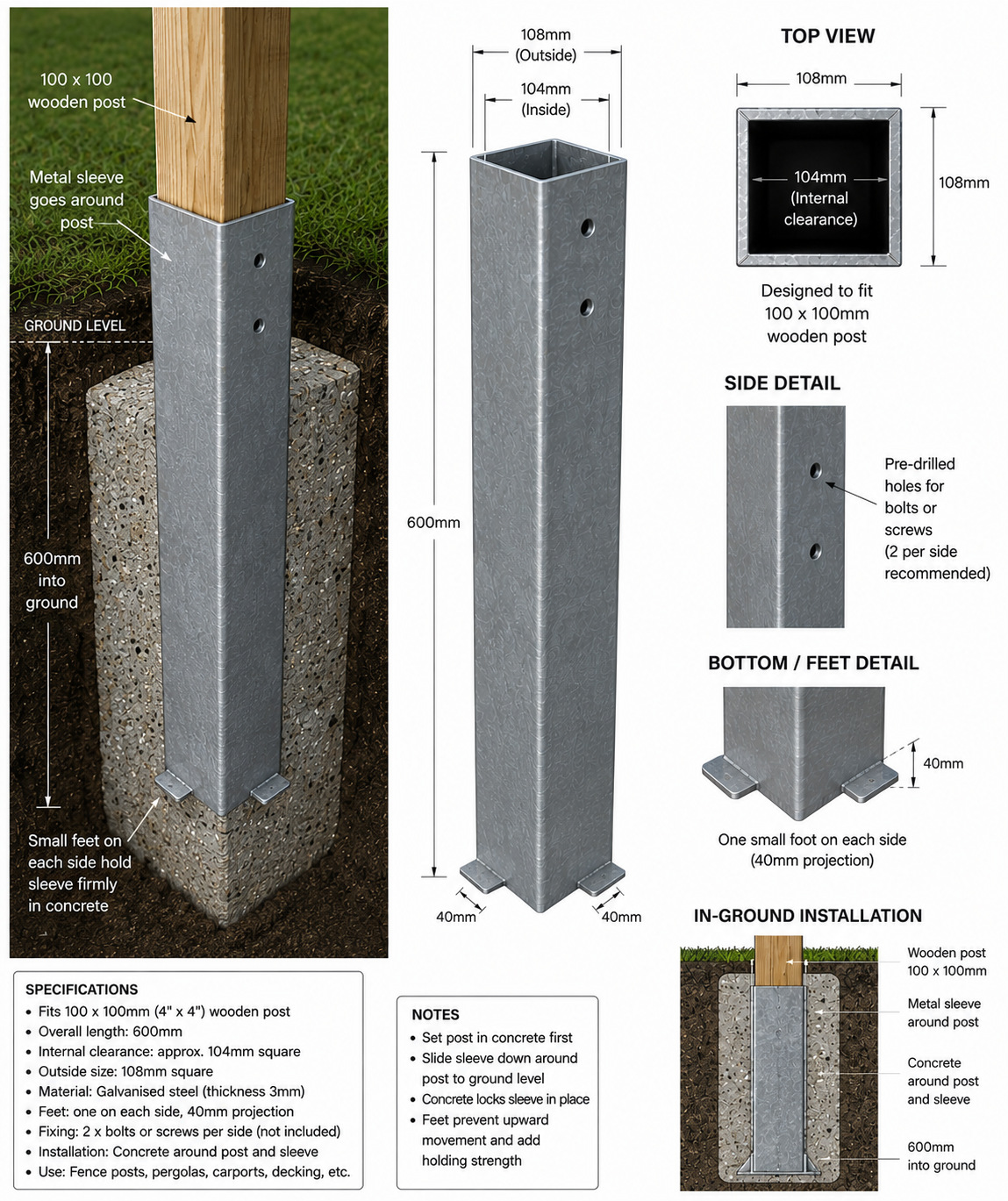

AVAILABLE SIZES

Choose the correct sleeve size for your timber post:

• 50 × 50mm
• 75 × 75mm
• 100 × 100mm
• 100 × 125mm
• 150 × 150mm
• 200 × 200mm

Please check your timber post measurements before ordering.

SUITABLE FOR

PostSwap™ is suitable for appropriate timber post applications, including:

• Fencing
• Garden structures
• Pergolas
• Timber screens
• Gates
• Decking
• Carports
• Outdoor timber structures

PRODUCT SPECIFICATIONS

Product: PostSwap™ Replaceable Timber Post Ground Sleeve
Length: 600mm
Material: Galvanised steel
Post type: Square timber post
Installation: In-ground concrete footing
Anchoring: Four small steel feet, one on each side
Post fixing: Removable bolts or screws
Purpose: Easier future timber post replacement

WHAT’S INCLUDED

• 1 × PostSwap™ galvanised steel replaceable post ground sleeve

Timber posts, concrete, bolts, screws and installation tools are not included unless stated otherwise.

IMPORTANT INFORMATION

Select the correct sleeve size for your timber post. The sleeve should be installed with suitable concrete and appropriate removable fixings.

The required footing size and installation method depend on the post height, intended use, ground conditions and expected loads. For gates, carports, structural posts or heavily loaded applications, seek suitable professional advice before installation.

FIT IT ONCE. SWAP POSTS WHEN NEEDED.

The concrete stays.

The sleeve stays.

The post can change.

PostSwap™

REPLACE THE POST — NOT THE CONCRETE

Less digging. Less mess. Easier maintenance.
