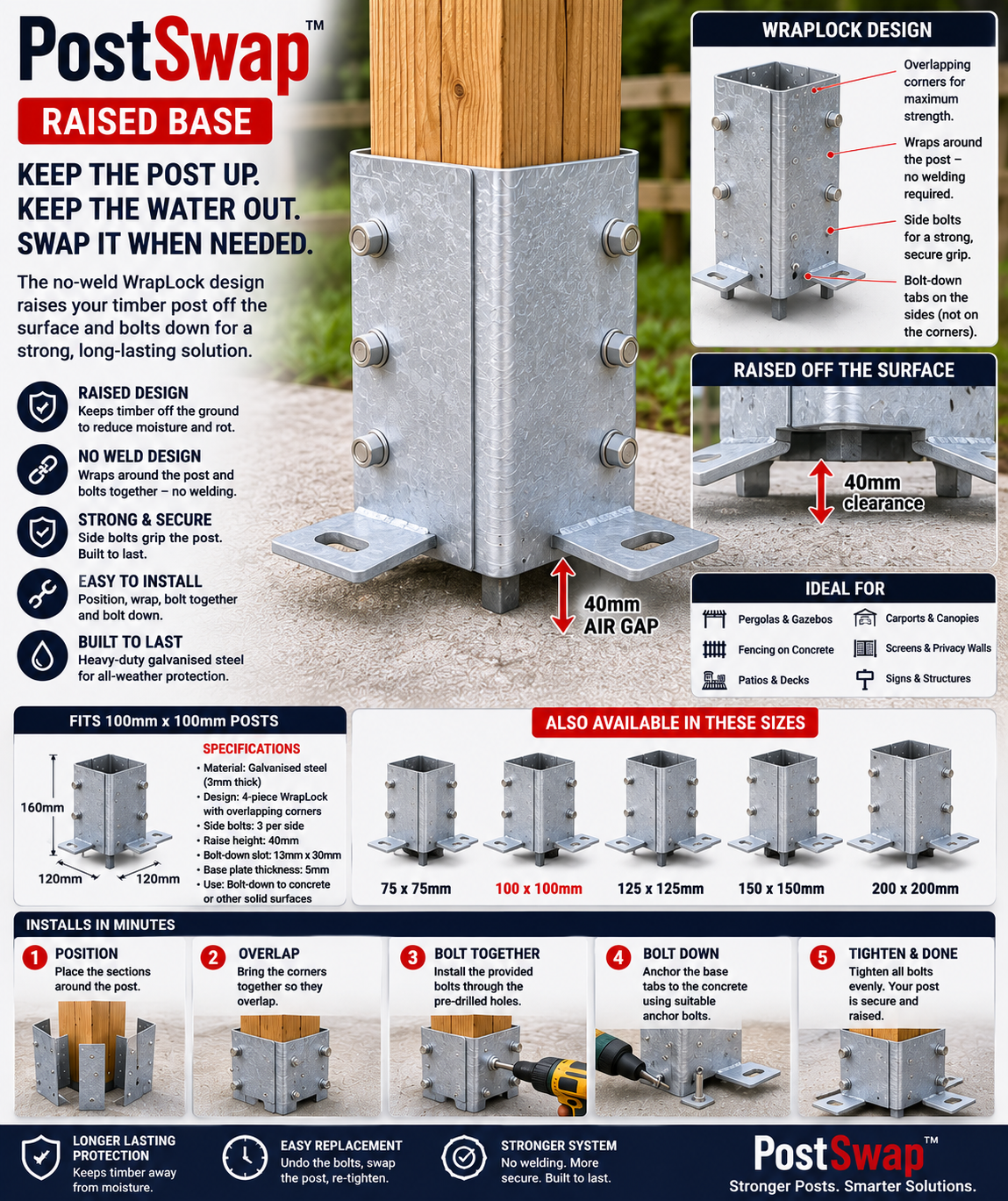

PostSwap™ Raised Bolt-Down Post Support – 40mm Air Gap Galvanised Steel Post Base
The PostSwap™ Raised Base is a heavy-duty bolt-down timber post support designed to keep wooden posts 40 mm off the ground, helping reduce direct contact with standing water and moisture.
Its four-piece WrapLock design fits around the timber post and bolts together without welding. The post can later be removed and replaced by undoing the side bolts—ideal for installations where long-term serviceability matters.
Suitable for pergolas, gazebos, fencing, patios, decks, carports, canopies, privacy screens and other timber structures.
Key Features
-
40 mm raised air gap beneath the timber post
- Helps reduce moisture contact and timber deterioration
- Heavy-duty 3 mm galvanised steel
- Four-piece WrapLock construction
- No welding required
- Overlapping corners for increased rigidity
- 3 side bolts per side
- 5 mm thick bolt-down base plates
- Slotted anchor holes for easier positioning
- Replaceable-post design
- Suitable for concrete and other appropriate solid surfaces
- Designed for exterior use
100 × 100 mm Specifications
- Post size: 100 × 100 mm
- Overall height: 160 mm
- Footprint: approx. 120 × 120 mm
- Raised clearance: 40 mm
- Body steel: 3 mm
- Base plate thickness: 5 mm
- Bolt-down slots: approx. 13 × 30 mm
